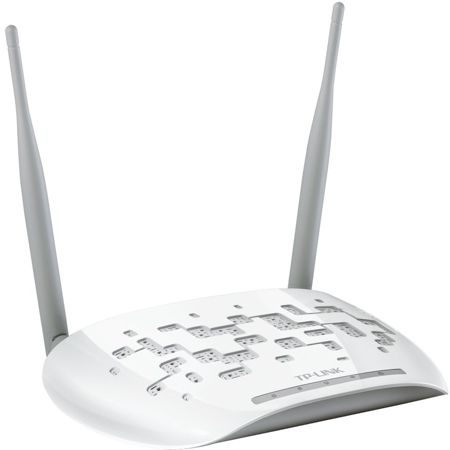

TP-LINK Wireless N Access Point Item # 122332
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
122332
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
TP-Link's wireless N access points TL-WA801ND are designed to establish or expand a scalable high-speed wireless N network to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to an existing wireless network. They provide incredibly high wireless performance - 15x the speed and 5x the range of wireless G, guarantying multiple users more freedom to enjoy a great wireless Internet experience in the home, office, cafe or even a hotel or airport.
Product Details
| Item # | 122332 |
| OfficeMax # | 23626809 |
| Manufacturer # | KA4955 |
| power source | AC adapter |
| Wireless Transmission Speed | 300 Mbit/s |
| Wireless Security | WPA2; WPA |
| Ethernet Port | Yes |
| height | 1.1 in |
| Number of Network (RJ-45) Ports | 1 |
| antenna type | Omnidirectional Antenna |
| PoE (RJ-45) Port | Yes |
| width | 6.9 in |
| depth | 4.7 in |
| Product Name | TL-WA801ND Wireless Access Point |
| Antenna Gain | 4 dBi |
| Total Number of Antennas | 2 |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Management | Web-based Management; QoS |
| brand name | TP-LINK |
| Wireless LAN Standard | IEEE 802.11n |
| Input Voltage | 12 V DC |
| Power Over Ethernet (PoE) Supported | PoE |
| ISM Maximum Frequency | 2.48 GHz |
| ISM Band | Yes |
| form factor | Desktop |
| ISM Minimum Frequency | 2.40 GHz |
| model name | TL-WA801ND |
| Fast Ethernet Port | Yes |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Product Tour
| Image/Features |
|---|
Wireless N Access PointWireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and voice over Internet Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated usersWPA/WPA2 encryptions provide your network with active defense against security threats |
AntennasMIMO™ technology provides robust high-bandwidth wireless Tx/Rx capability at further range CCA™ improves wireless performance while automatically avoiding channel conflictExternal detachable antennas allow for better alignment and stronger antenna upgrades |
Power over EthernetSupports up to 30 meters(100 feet)of Power over Ethernet capability for flexible performance
WPS Button - One Button Security SetupThe TL-WA801ND features Wi-Fi Protected Setup™ (WPS) which allows you to setup your security by simply pressing the "WPS" button. This automatically establishes a WPA2 secure connection which is more secure than WEP encryptions. Not only is WPA2 faster than normal security setups, you won’t have to remember a password!
|
Click to Start
See More:
Overview
-
What This Product Does
The TL-WA801ND 300 Mbps Wireless-N Access Point by TP-LINK enables you to establish or expand a high-speed wireless Internet network and connect multiple Ethernet-enabled devices like game consoles, digital media adapters, printers, or network-attached storage devices to an existing wireless network. Based on the 802.11n wireless standard, this wireless access point offers 15 times the speed and 5 times the range of typical wireless-G devices. The device can be conveniently powered through an Ethernet cable.
-
Fast, Stable Internet Connection with MIMO
Featuring advanced MIMO (Multi Input Multi Output) technology, the Wireless-N Access Point offers exceptionally high wireless speeds of up to 300 Mbps, making it ideal for high-bandwidth or interruption-sensitive applications like video streaming, online gaming, and VoIP calls. CCA technology improves wireless performance while automatically avoiding channel conflicts.
-
Multiple Operating Modes
The Wireless N Access Point supports a host of different functions that make your wireless networking experience more flexible. It supports Access Point, Client, Universal/WDS Repeater, Point to Point Bridge, Point to Multi-Point Bridge mode to enable various wireless applications. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.
-
Passive POE Compatible
The Wireless N Access Point comes with a power injector that uses Passive Power over Ethernet technology. The injector can supply both electricity and data streams over a single RJ45 cable to an access point up to approximately 98 feet away. This is ideal if there is no electrical outlet near where your device gets the best signal quality. -
Multi-SSID with VLAN Support
The Wireless N Access Point features a multi-SSID function, allowing you to create a separate network that segments users who need priority access or different levels of security. Different SSIDs refer to VLANs with different services to protect confidential files from those who should not have access. The device supports up to four SSIDs. -
One Button Security Setup
The TL-WA801ND features Wi-Fi Protected Setup™ (WPS) which allows you to setup your security by simply pressing the "WPS" button. This automatically establishes a WPA2 secure connection which is more secure than WEP encryptions. Not only is WPA2 faster than normal security setups, you won’t have to remember a password!
Product Views
Features
- Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and voice over Internet
- MIMO™ technology provides robust high-bandwidth wireless Tx/Rx capability at further range
- CCA™ improves wireless performance while automatically avoiding channel conflict
- Supports multiple operating modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)
- Easily setup a WPA encrypted secure connection at a push of the QSS button
- Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming
- Supports up to 30 meters of Power over Ethernet capability for flexible performance
- Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users
- WPA/WPA2 encryptions provide your network with active defense against security threats
- Backward compatible with 802.11b/g products
- External detachable antennas allow for better alignment and stronger antenna upgrades
- Wall mounted available, also can be placed horizontally on a table or desk
Package Contents
- TL-WA801ND
- 2 detachable Omni directional antennas
- PoE Injector
- Power supply unit
- Resource CD
- Quick Installation Guide
Compatibility
-
Work with Windows, Mac and Linux.
Access Point Comparison Chart
|
|
|
|
| 150Mbps Wireless N Access Point (TL-WA701ND) | 300Mbps Wireless N Access Point (TL-WA801ND) | 300Mbps Wireless N Access Point (TL-WA901ND) | |
|---|---|---|---|
| Speed | Up to 150 Mbps | Up to 300 Mbps | Up to 300 Mbps |
| Range | Good | Better | Best |
| Wireless N [...] |
|
|
|
| Easy Setup [...] |
|
|
|
| Number/Type of Antenna(s) | 1 * 5dBi | 2 * 5dBi | 3 * 4dBi |
| Detachable Antenna(s) [...] |
|
|
|
| Multiple Operating Modes [...] |
|
|
|
| Passive POE [...] |
|
|
|
| One Button Advanced Security Setup [...] |
|
|
|
| Multiple SSIDs (Guest Networks) |
|
|
|
| CCA Technology [...] |
|
|
|
| MIMO Technology [...] |
|
|
|
| Power On/Off Button |
|
